■堅硬金屬外殼,極大搖臂角度±95°
■不銹鋼滾輪,沖頭及彈簧
■可選配M18x1.5索頭

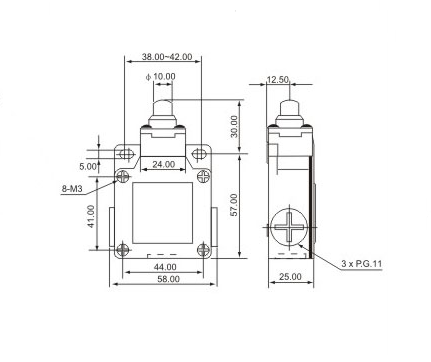

規格
型號
|
LSA
|
LSA-001
|
LSA-003
|
LSA-012
|
LSA-021
|
LSA-041
|
LSA-031
|
LSA-051
|
LSA-061
|
LSA-071
|
LSA-081
|
操作力
|
OF(最大)
|
800g
|
800g
|
800g
|
400g-cm
|
400g-cm
|
400g-cm
|
400g-cm
|
150g
|
150g
|
150g
|
回彈力
|
RF(最小)
|
400g
|
400g
|
400g
|
100g-cm
|
100g-cm
|
100g-cm
|
100g-cm
|
50g
|
50g
|
50g
|
前預行程
|
PT(最大)
|
1.8mm
|
1.8mm
|
1.8mm
|
20°
|
20°
|
20°
|
20°
|
30mm
|
30mm
|
30mm
|
觸發位置
|
TP±10%
|
2.0mm
|
2.0mm
|
2.0mm
|
22.5°
|
22.5°
|
22.5°
|
22.5°
|
22.5°
|
22.5°
|
22.5°
|
行程移動分辨率
|
MD(最大)
|
1.2mm
|
1.2mm
|
1.2mm
|
10°
|
10°
|
10°
|
10°
|
14°
|
14°
|
14°
|
觸后行程
|
OT(最小)
|
4.0mm
|
4.0mm
|
4.0mm
|
75°
|
75°
|
75°
|
75°
|
20mm
|
20mm
|
20mm
|
累積總行程
|
TT
|
5.8mm
|
5.8mm
|
5.8mm
|
95°
|
95°
|
95°
|
95°
|
50mm
|
50mm
|
50mm
|
搖臂轉換分角度
|
|
|
|
|
22.5°
|
22.5°
|
22.5°
|
22.5°
|
|
|
|
雙斷開機械功用
|
INO+INC Force Break snap action強迫斷開快速機芯
|
額定電壓/電流
|
10(4)A, 125, 250VAC / 6(2)A, 380VAC For inductance Load, Cosφ=0.4
|
接觸電阻
|
25mΩ max. (initial value)
|
絕緣電阻
|
100mΩ min. (at 500VDC)
|
電介強度
|
1000VAC, 50/60 Hz for 1 minute between terminals of the same polarity
|
1500VAC, 50/60 Hz for 1 minute between current-carrying and non-current-carrying metal parts
|
1500VAC, 50/60 Hz for 1 minute between each terminal and ground
|
電氣壽命
|
500,000 at 10A 250VAC Resistive
|
機械壽命
|
10, 000, 000 operations min. (under rated conditions)
|
操作速度
|
5mm/s to 0.5m/s
|
防水防塵能力
|
IP66(防壓力水柱級)
|
上升溫度
|
Max 30℃ over ambient temperature at rated voltage/current
|
合乎標準
|
Cenelec EN 50041, EN 50047, IEC 337-1, VDE 0660
|
操作溫度
|
-5℃~+65℃ (with no icing)
|
保存溫度
|
-5℃~+65℃ (with no icing)
|
濕度
|
95% RH Max.
|
沖擊系數
|
Mechanical durable: 1000m/s2 min.
|
Malfunction: 300m/s2 min.
|
振動頻率
|
Malfunction: 10 to 55Hz, 1.5mm double amplitude
|
端子螺絲扭力
|
6-8 kgf-cm
|
其他螺絲扭力
|
Cover 12-14 kgf-cm/Head 8-9 kgf-cm/Mounting 50-60 kgf/cm
|
裸銅線尺寸
|
φ2 Max
|
電纜尺寸
|
φ12 Max(IP 65 if use cable φ8-9)
|
注:帶彈簧系列產品,操作體的使用范圍為從彈簧的前端到彈簧全長的1/3以內。
